高频电源

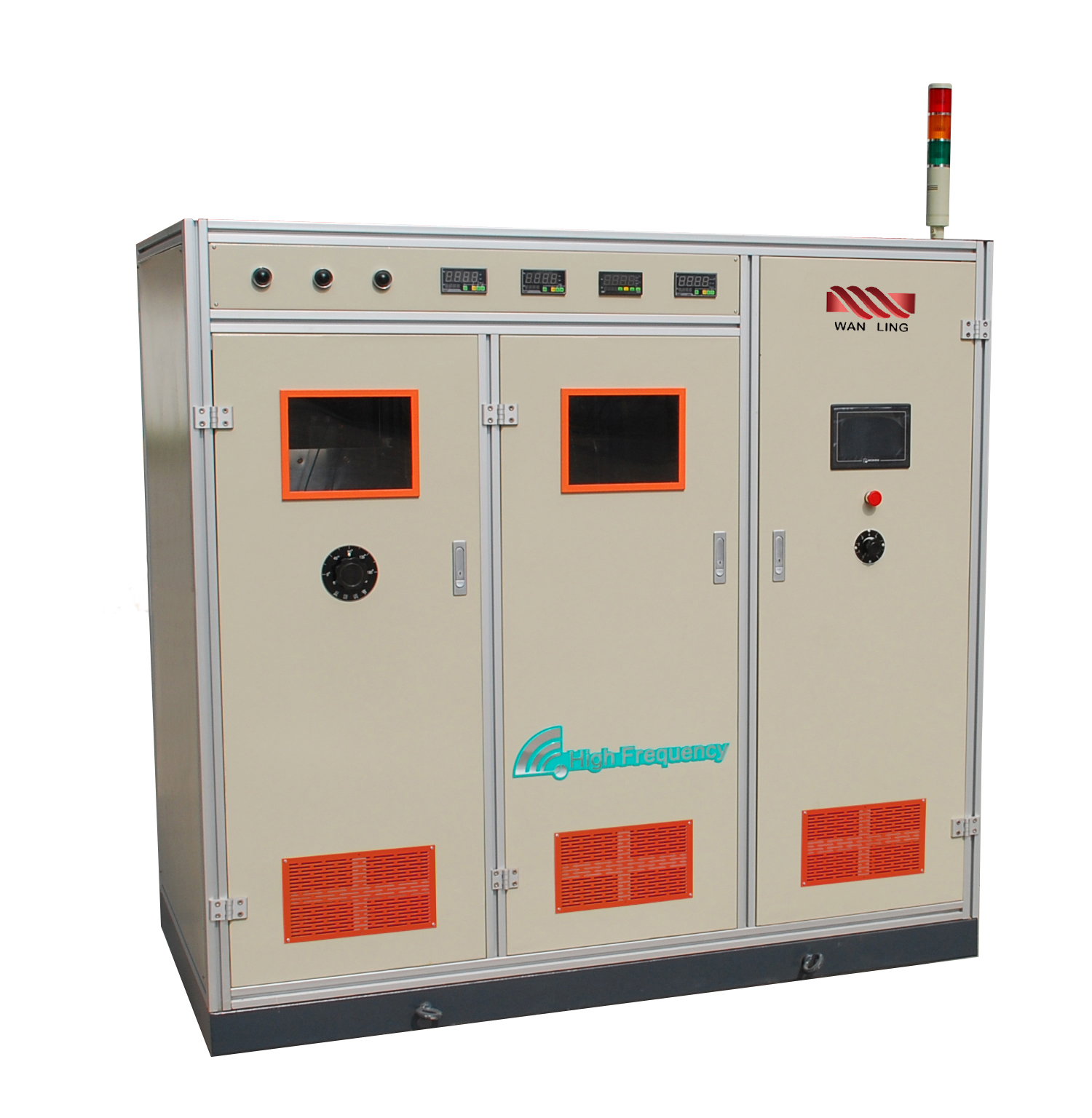

GGCZ 系列智能化高频感应加热电源装置


主要配置与性能

Main configuration and performance

1.高频调压采用模块锁相环数字脉冲触发电路
2.回路采用晶闸管模块组件,不通水、体积小、可靠性高。
3.灯丝供电采用恒压器,稳压精度高,寿命长,节能显著。
4.灯丝栅极风冷式,隔直流采用大容量、高耐压云母电容。
5.整流变压器采用低损耗变压器。
6.输出变压器具有二维调节功能,感应器与工件相对位置调整方便。
7.设备具有过电压、过电流、欠水压保护功能。
8.控制回路具有软启动、稳压功能。
9.与数控淬火机床、内循环冷却系统组成成套设备,自动化程度高,控制精
度及零件热处理一致性和合格率高。
10.设备一键开机,一档预热、二档预热、加热自动程序进行。
11.设备构件防锈、防磁。
12.仪表显示数字化可智能化控制。
1.High frequency voltage regulation adopts a digital pulse trigger circuit of modular phase locked loop
2.Main circuit adopts thyristor modular. Water doesn’t go through it. It has small volume and high reliability.
3.Electric supply of filament adopts constant voltage device, which has high voltage stabilizing accuracy, long life and distinct energy-saving
efficiency.
4.Filament rid adopts air-cooling. Blocking adopts large capacity and high voltage resistance mica condenser.
5.Rectifying transformer is low consumption transformer.
6.Output transformer has 2-dimensional regulating function, which makes center alignment of inductor and workpiece be easy.
7.This generator also has functions as over voltage, over current and protecting water pressure lacking.
8.Control circuit has functions as soft starting and voltage stabilizing.
9.It forms a complete set of equipment with CNC quenching machine tool and internal circulation cooling system, with high degree of automation and precise control
10. One-key start-up function, the procedures of 1st preheat option, 2nd preheat option and auto heating are running.
11. The components are made of anti-rust and anti-magnetic materials.
12. The instrument display enables digital and intelligent control.
序号No. 产品型号Name 振荡功率Oscillating PowerkW 输出功率
Output Powe kW
振荡频率
Oscillating Frequency kHZ
电源输
入容量
Input Power kVA
重量Weight kg 外形尺寸 (长×宽×高)Dimension(L×W×H)
mm×mm×mm
1 GGCZ25-4A 30 25 350-450 50 700 1800×1000×1700
2 GGCZ50-2 60 50 200-250 100 1000 主机 Generator 1800×700×1700
3 GGCZ80-2A 100 80 200-250 160 2500 主机 Generator 2100×800×1900
4 GGCZ150-2 200 150 200-250 320 2700 主机 Generator 2400×1500×2000
5 GGCZ300-2 400 300 200-250 630 3500 主机 Generator 2400×1500×2000
6 GGCZ600-2 800 600 200-400 1250 5000 主机 Generator 2400×2000×2000
7 GGCZ800-2 1000 800 200-400 1600 5500 主机 Generator 2400×2000×2000
8 GGCZ25-0.3 30 25 30-50 50 750 1800×1000×1700
9 GGCZ50-0.3 60 50 30-50 100 1500 主机 Generator 1800×1000×1700
10 GGCZ80-0.3 100 80 30-50 160 3500 主机 Generator 2100×860×1900
11 GGCZ150-0.3 200 150 30-40 320 3200 主机 Generator 2000×1200×2000
12 GGCZ300-0.3 400 300 30-40 630 3800 主机 Generator 2400×1400×2000
13 GGCZ25-0.3/4 30 25
双音频
30-50
350-450
50 800 主机 Generator 1800×1000×1900
14 GGCZ50-0.3/2 60 50
双音频
30-50
200-250
100 2000 主机 Generator 1800×1000×1900
15 GGCZ80-0.3/2 100 80
双音频
30-50
200-250
100 3200 主机 Generator 1600×1600×2000
16 GGCZ150-0.3/2 200 150
双音频
30-50
200-250
320 3500 主机 Generator 2400×2400×2000
17 GGCZ300-0.3/2 400 300
双音频
30-50
200-250
630 4000 主机 Generator 2400×2400×200
